Superior Engineering Track-Corrected Diff Upgrade

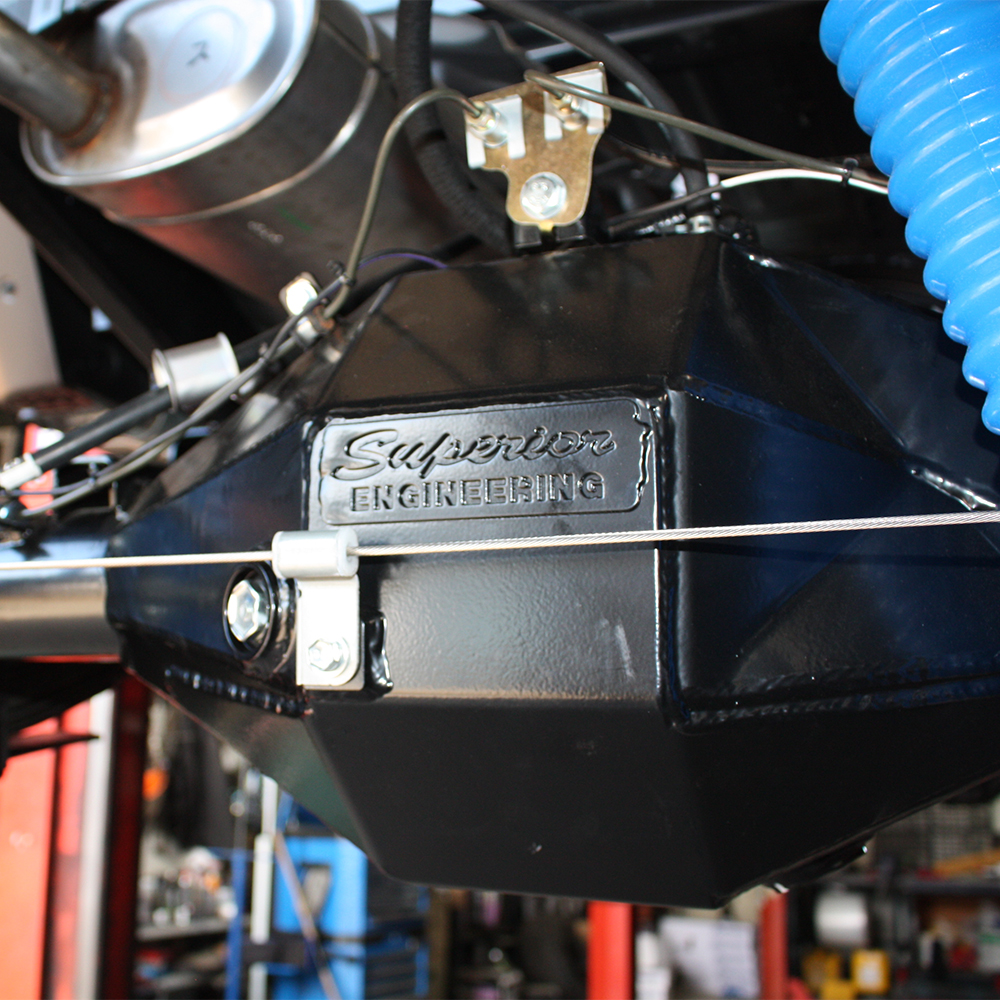

Designed and manufactured in Australia, the Superior Engineering Track-Corrected Chromoly Diamond Diff Housing sets the benchmark for strength, precision, and reliability in 70 Series LandCruiser axle upgrades.

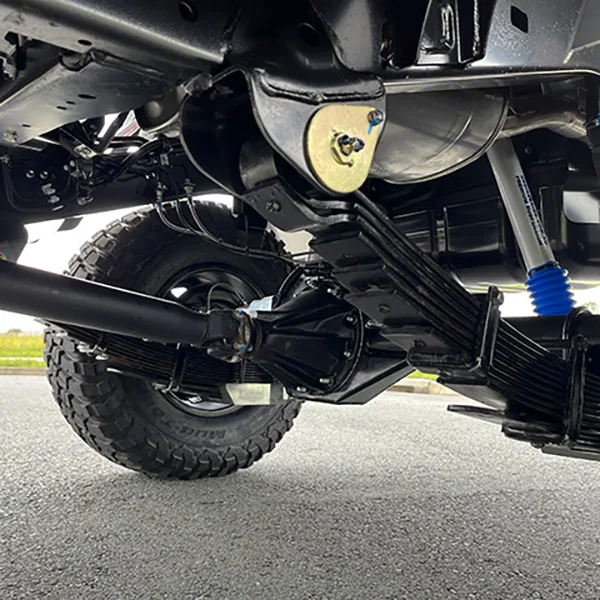

Built to correct the factory narrow rear track found in VDJ70 Series LandCruisers, this housing is manufactured 100mm wider than OEM to perfectly align the rear track with the front — improving stability, handling, and load distribution both on and off-road.

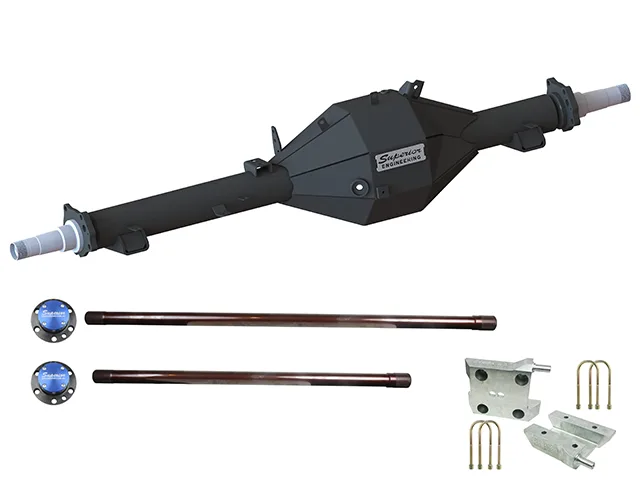

At its core is Superior Engineering’s unique 830MPa Chromoly wide-diamond centre section, reinforced with internal gussets and integrated with 90mm OD, 13.5mm thick axle tubes. This design eliminates the need for external bracing while delivering superior strength and increased ground clearance over competitor housings.

Engineered for Strength & Longevity

• Compatible with OEM locked and non-locked diff centres
• 4140 Chromoly spindles retaining OEM brakes and wheel bearings
• CNC-machined for perfect straightness and true axle alignment
• RCV 300M full-floating axles with billet 4340M drive plates included
• BIS80 high-clearance U-bolt plates supplied as standard
• Axle load rating of 3,150kg — suitable for all LC70 GVM upgrades

Backed by a lifetime warranty against bending or breakage and supported by an Australia-wide dealer network, this Superior Engineering diff upgrade delivers uncompromising strength, precision, and peace of mind wherever your LandCruiser takes you.
