4WDING • ROAD • TOWING CARAVANS & CAMPERS
Our vision has always been to create a product that offers the best performance while delivering the smoothest ride possible.
With the MRP 2.5, that vision is now a reality. You can now fully customise your ride to your needs to maximise comfort and performance in all types of terrain. Embrace green and get ready for the ride of your life!
GET YOUR HANDS ON THE EFS MRP 2.5 FOR YOUR VEHICLE
- · Solid aluminium top hat + molded rubber eye bush for enhanced strength & durability
- · Captive eye design ensures shock stays secure if bush fails
- · Teflon coated braided hose to the remote canister (when not piggy backed)
- · Heavy duty rubber bonded bushes top and bottom
- · Seamless steel tube body honed for perfect sealing
- · Zinc plated body built to last
- · Green anodized CNC machined 6061-T6 billet aluminium
- · FUCHS Suspension Fluid for improved performance at all temps
- · Vehicle-specific 3″ diameter spring coil with height adjustment
- · Heavy-duty powdered steel floating piston + 6061-T6 hard anodized high flow aluminium piston
- · High quality NOK seals – main seal, wiper seal, scraper seal

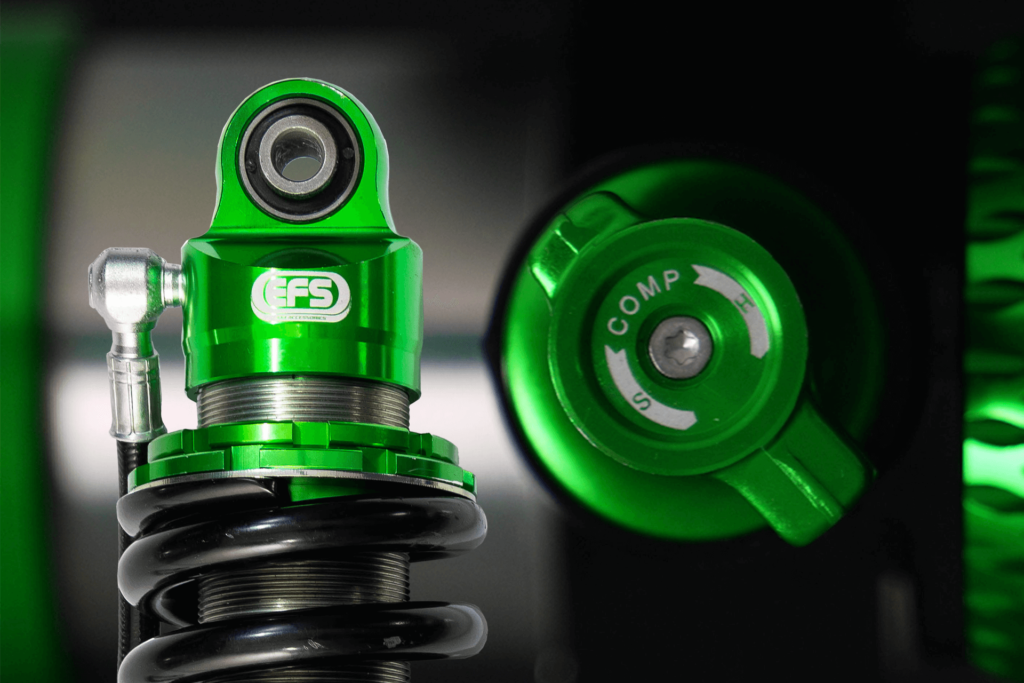

Adjustable Front Height & Comfort: The MRP 2.5 gives you ultimate control of the front height of your rig and enables you to set your preferred level of comfort with ease.

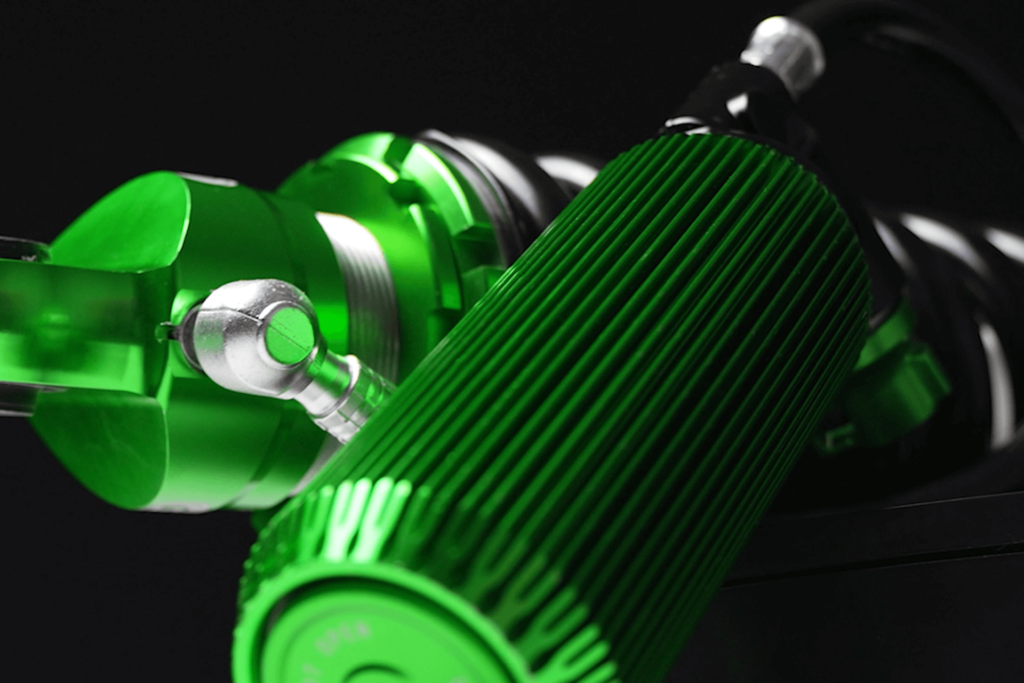

Heavily Finned Remote Reservoir: Proper heat dissipation is vital for increasing performance and lifespan of the shock absorber, the finned remote reservoir does just that.
NEW 2YR / 100,000KM WARRANTY WITH ELIGIBILITY FOR EXTENDED WARRANTY UP TO 6 YEARS*

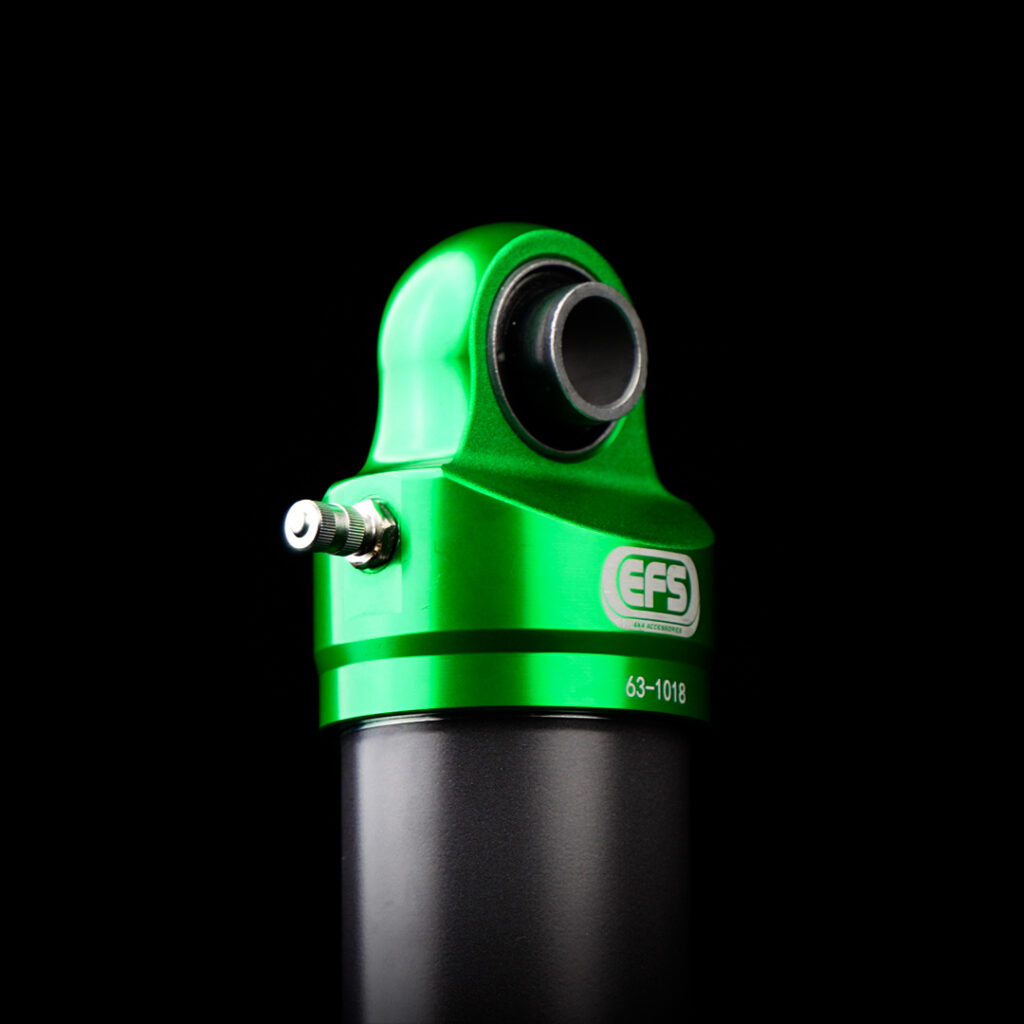

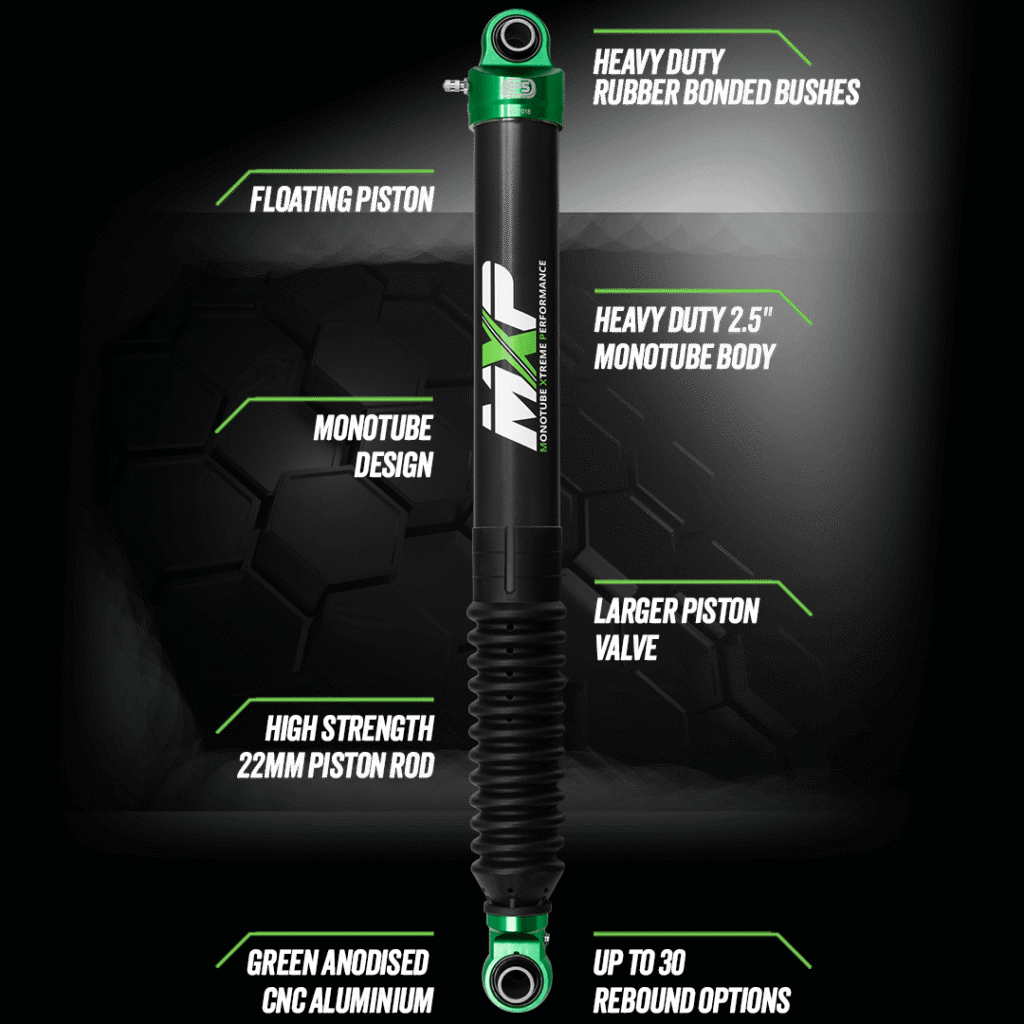

Experience MXP Monotube Performance
Built around a rugged 2.5" monotube body and a high-strength 22mm piston rod, the MXP delivers reliable damping in any condition. With up to 30 rebound settings, you can fine tune everything from smooth daily comfort to aggressive off-road control.
Key Features
- Monotube Design & Floating Piston: Consistent performance and durability in all conditions.
- Up to 30 Rebound Options: Adjustable rebound damping enhances control, responsiveness, and stability.
- No Reservoir – Easy Fitment: Direct bolt-in replacement with precision-fit hardware and high-quality mountings. No modifications required.

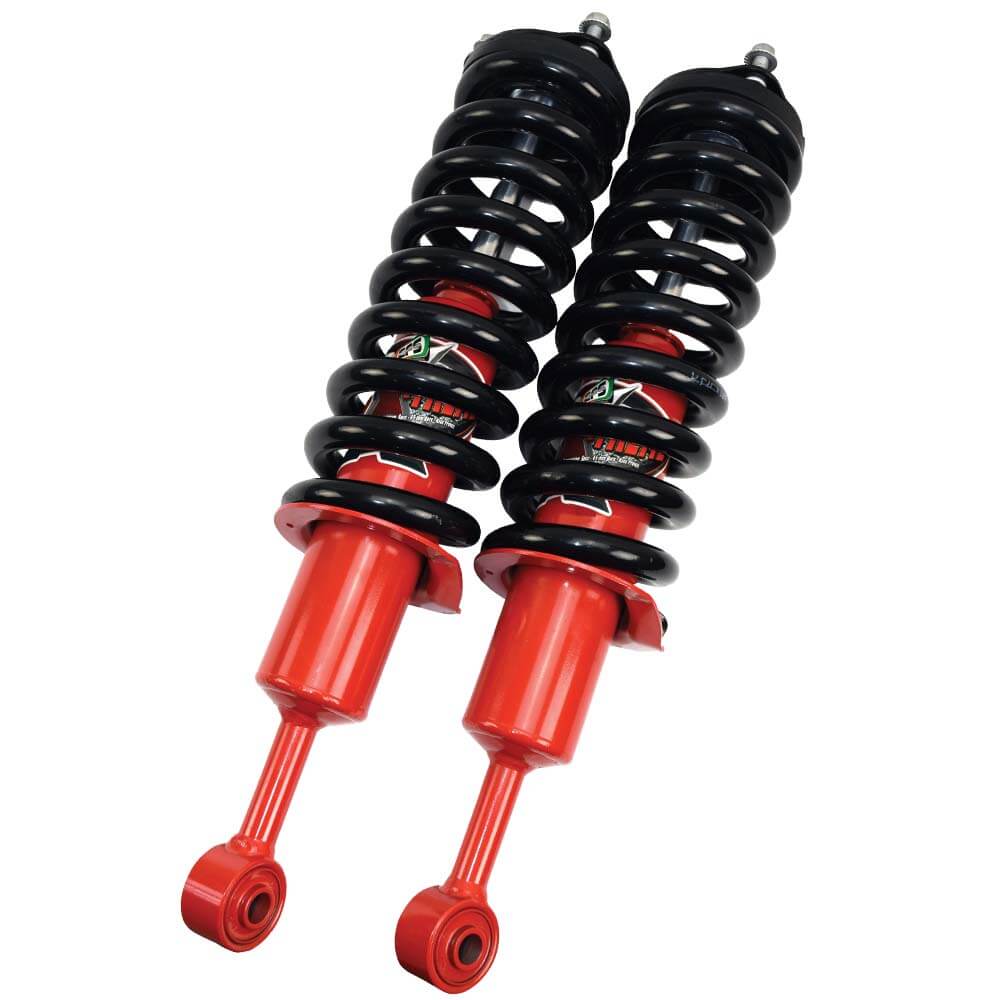

Are you ready to enjoy your next 4WD adventures to the X-TREME?
The EFS X-Treme range of shocks and struts is our premium product line. X-Treme products have a reputation for toughness in the competitive retail market. Born over a decade ago out of the demands of 4WD competition, they’ve been refined to become one of the toughest family-friendly suspension solutions on the market. X-Treme offers unsurpassed durability, handling, and ride quality. Whether it’s across corrugated outback tracks or other highly strenuous off-road environments, X-Treme has your back.
Specifications
- Oversized eye rings & pin mounts
- 20mm hardened chromed piston rod
- 2mm h/d external wall thickness
- Internal hydraulic rebound stop
- Bonded rubber eye bushes
- Special high-temperature fluid
- Quality multi-lip Viton seal
- High strength iron piston rings
- Large 45mm bore
- Twin-tube hydraulic design
- Dynamic motion control valve

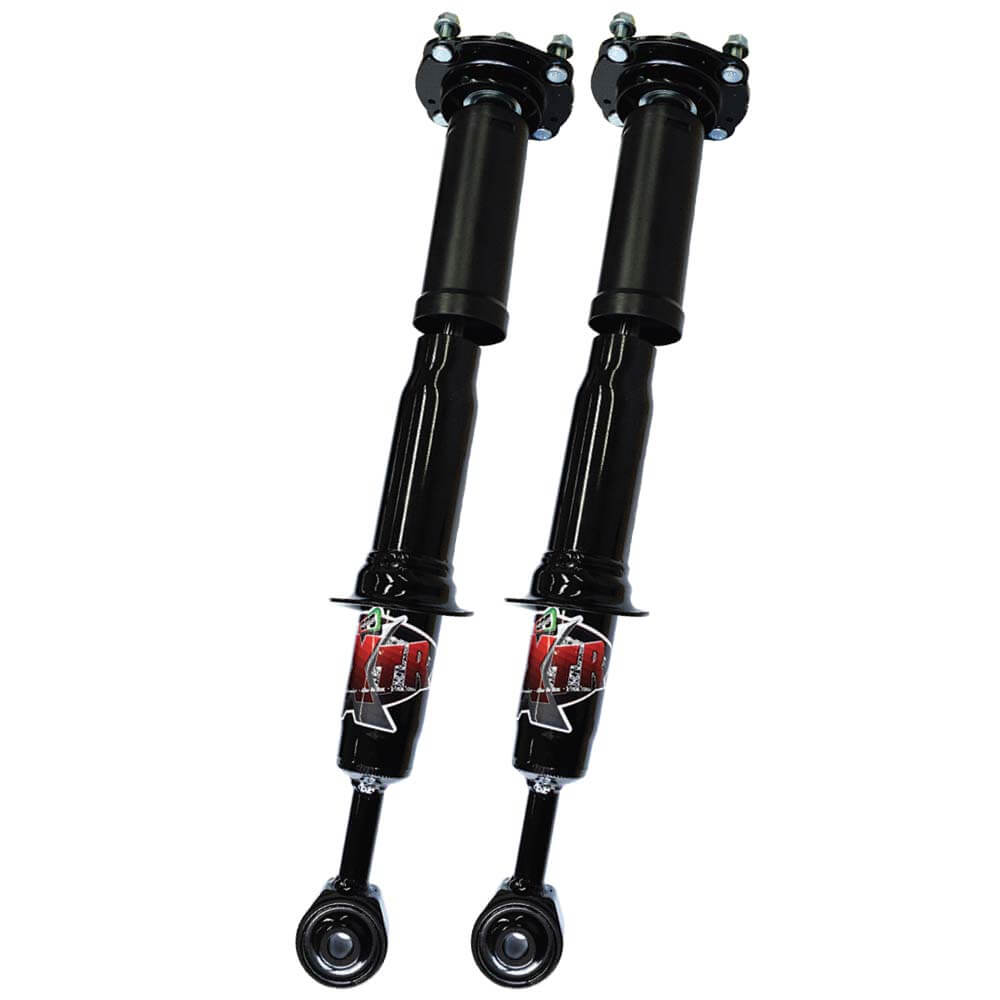

When you really need to muscle up, think EFS XTR…
The EFS XTR shock absorber range has been designed specifically for outback off-road touring in heavily laden 4WDs. It features increased oil capacities to reduce operating temperatures and incorporates a highly robust construction to tackle the most challenging outback roads. EFS XTR shock absorbers are manufactured using high quality internal and external components to meet the demands of the modern 4WD. When accessorising, please keep damping requirements in mind.
Specifications
- 64mm external tube – greater oil capacity to keep the valve at a lower operating temperature
- Low-pressure nitrogen gas – prevents the oil from cavitation (foaming)
- Long-travel design – maximises wheel articulation
- 40mm piston, twin-tube construction – increased control of the spring during rebound and compression cycles
- 20mm quality hardened chromed piston rod – longer service life and greater lateral strength
- 2mm outer & inner wall thickness – greater durability and strength
- Dynamic motion control technology – allows adjustment to different road and off-road conditions
- High-quality poly and rubber mounting bushes
For when you need extra grit…
The EFS Elite Shock Absorber range is designed for the 4WD owner looking for the best of the best. Built with high-quality internal and external components, they ensure excellent performance and longevity for your vehicle.
Specifications
- 51mm-60mm external tube – greater oil capacity to keep the valve at a lower operating temperature
- Low-pressure nitrogen gas – prevents the oil from cavitation (foaming)
- Long-travel design – maximises wheel travel when a vehicle is raised and increases articulation
- 35mm piston, twin-tube construction – increased control of the spring during rebound and compression cycles
- 16mm quality hardened chromed piston rod – longer service life and greater lateral strength
- 2mm outer & inner wall thickness – greater durability and strength
- Dynamic motion control technology – allows adjustment to different road and off-road conditions
- High-quality poly and rubber mounting bushes

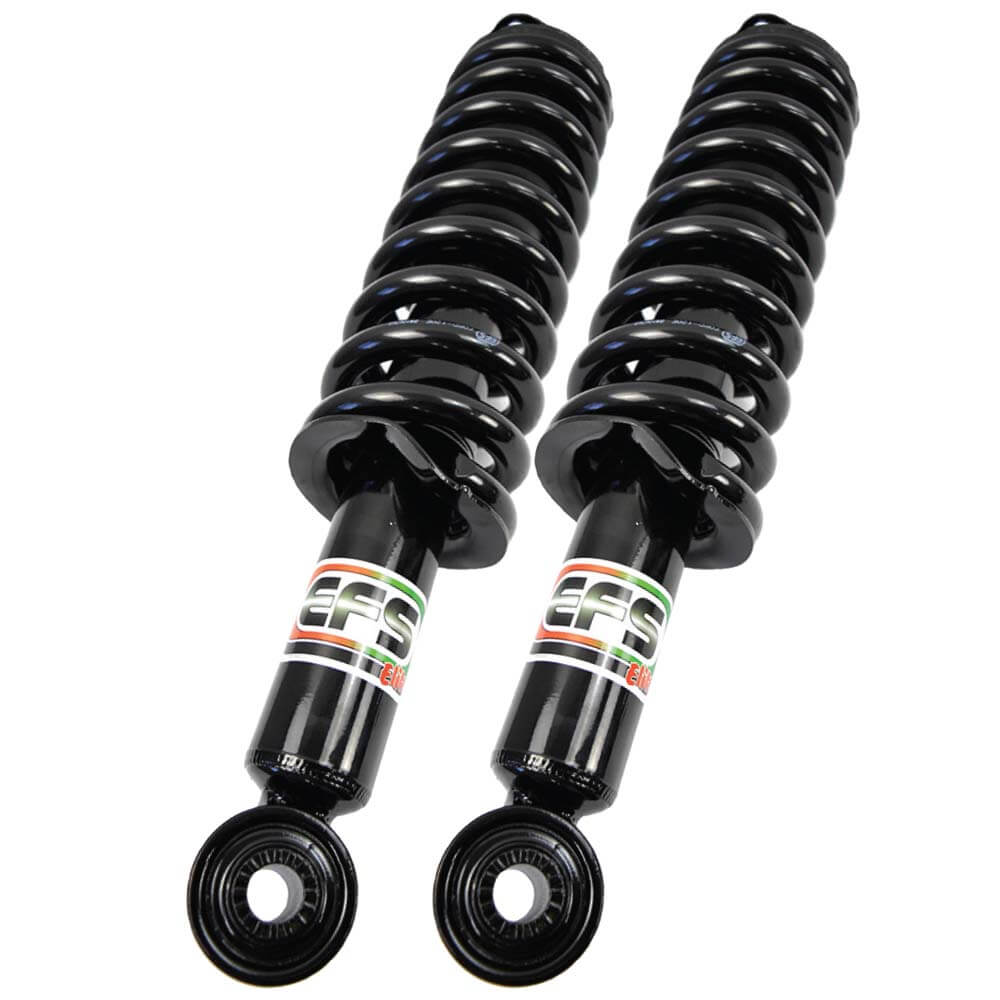

ELITE
The EFS Elite Shock Absorber range is designed for the 4WD owner looking for the best of the best. As you’d expect, they are built with high-quality internal & external components, ensuring excellent performance and longevity for your vehicle.
EFS Steering Dampers – Tough, reliable, and built to last
We’ve designed EFS Steering Dampers for the price-conscious 4WD enthusiast who needs a shock absorber that gets the job done. EFS dampers feature hardened chromed piston rods for durability and a 51mm external tube, providing greater oil capacity and keeping the valve at a lower operating temperature.
Specifications
- Low pressure nitrogen gas – prevents oil cavitation (foaming)
- Long travel design – maximises wheel travel when a vehicle is raised and increases articulation
- 32mm piston, twin-tube construction – ensures greater control of the spring during rebound and compression cycles
- 15mm quality hardened chromed piston rod – increased durability
- 1.2mm outer and inner wall thickness – for greater durability and strength
- Dynamic motion control technology – helps your vehicle adjust to different road and off-road conditions
- High-quality internal and external components – prevents fade under harsh conditions and includes long-life poly bushes for durability
EFS X-TREME STEERING DAMPER
The EFS X-Treme Steering Damper will give you unmatched steering control and reliability. It’s engineered with increased valve forces to aid in the control of over-sized tyres that cause bump steer and side load forces.
Specifications
- · 35mm bore
- · Oversized bulged 60mm body
- · 16mm hardened chrome shaft
- · Gas cell technology
- · Allows the steering damper to operate horizontally
- · Increased valve forces to suit 33 – 37 inch tyres

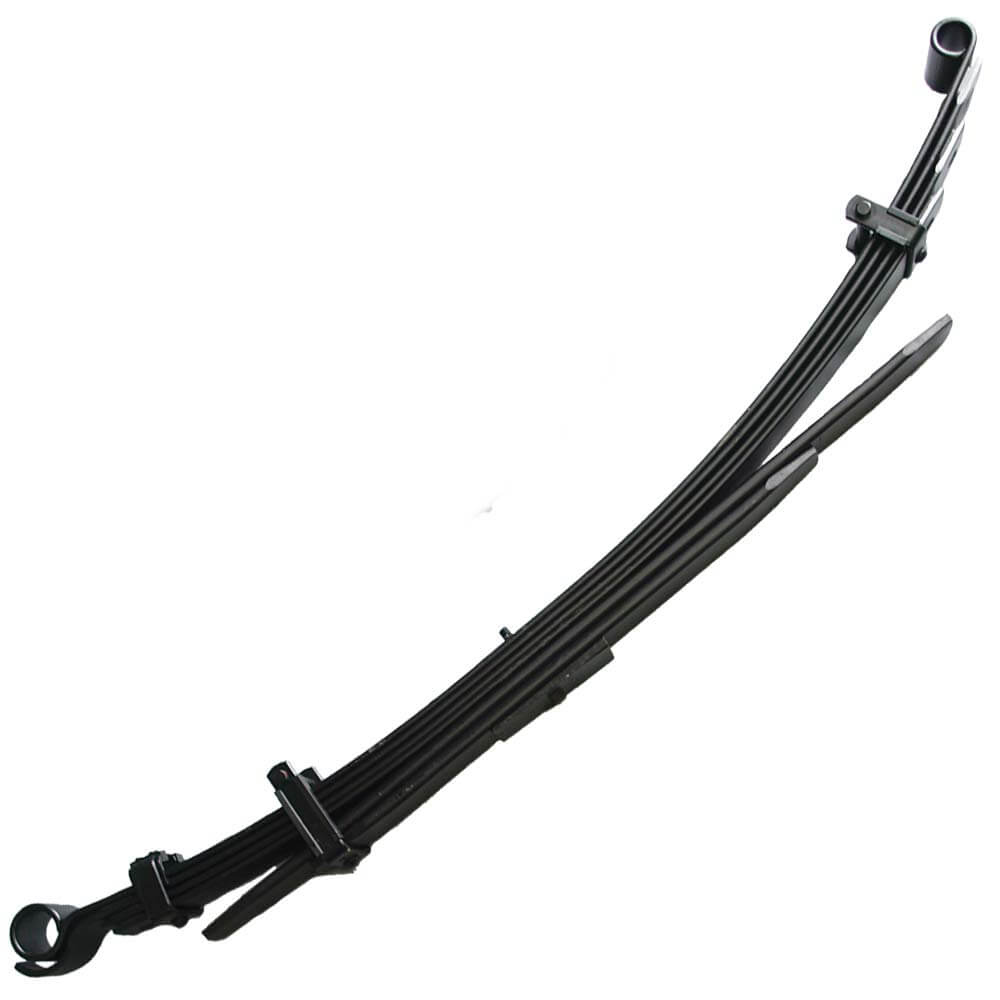

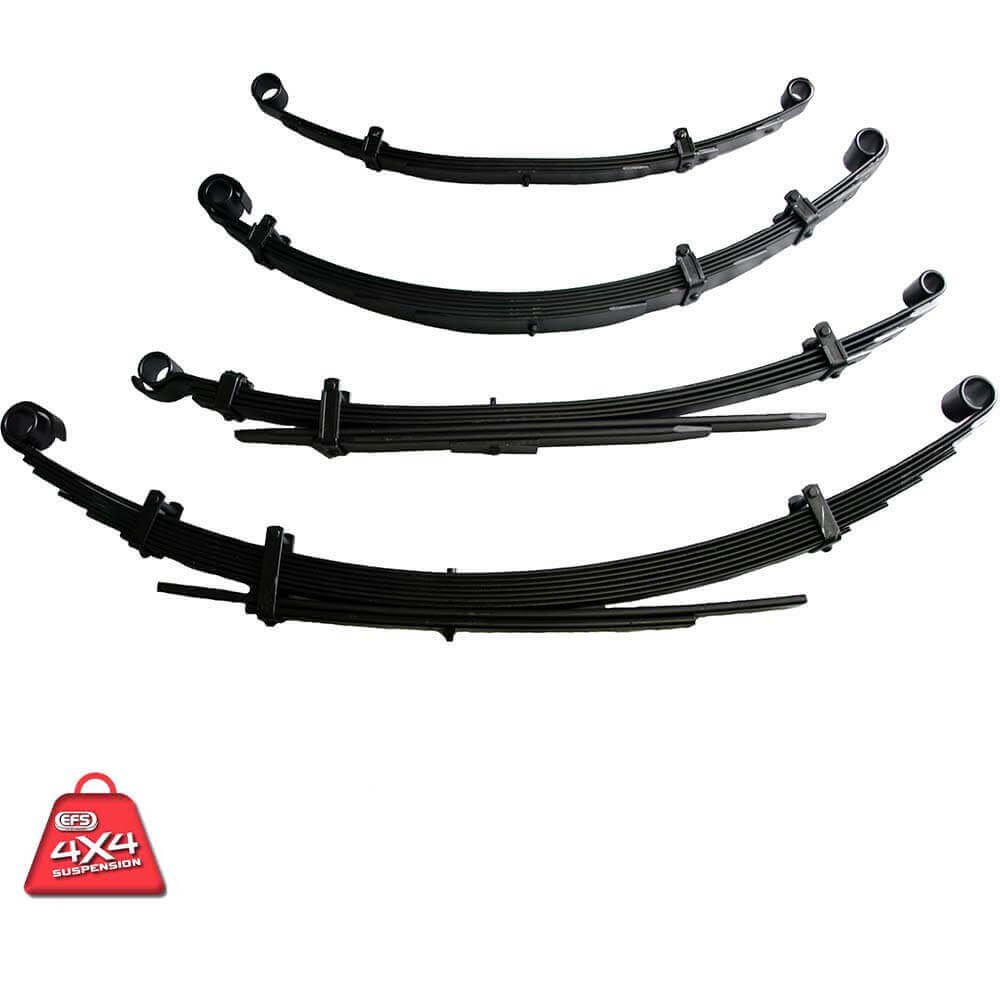

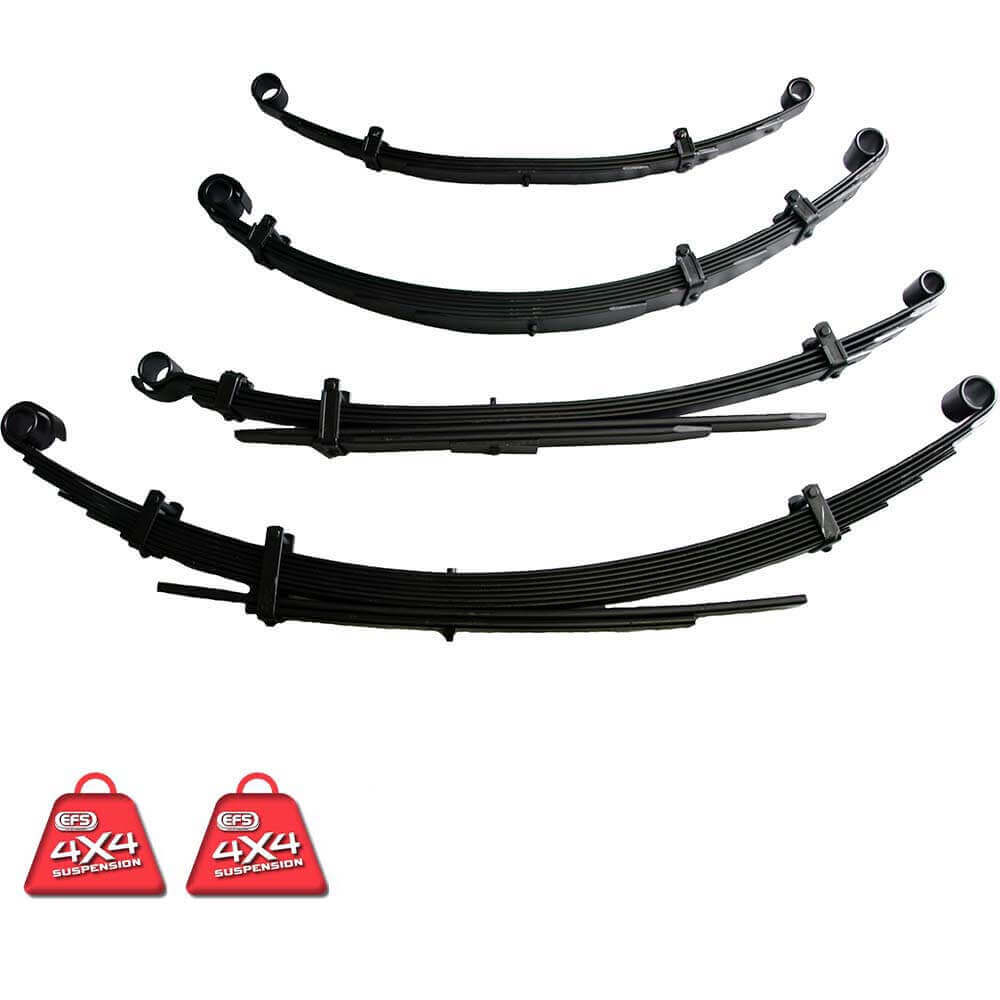

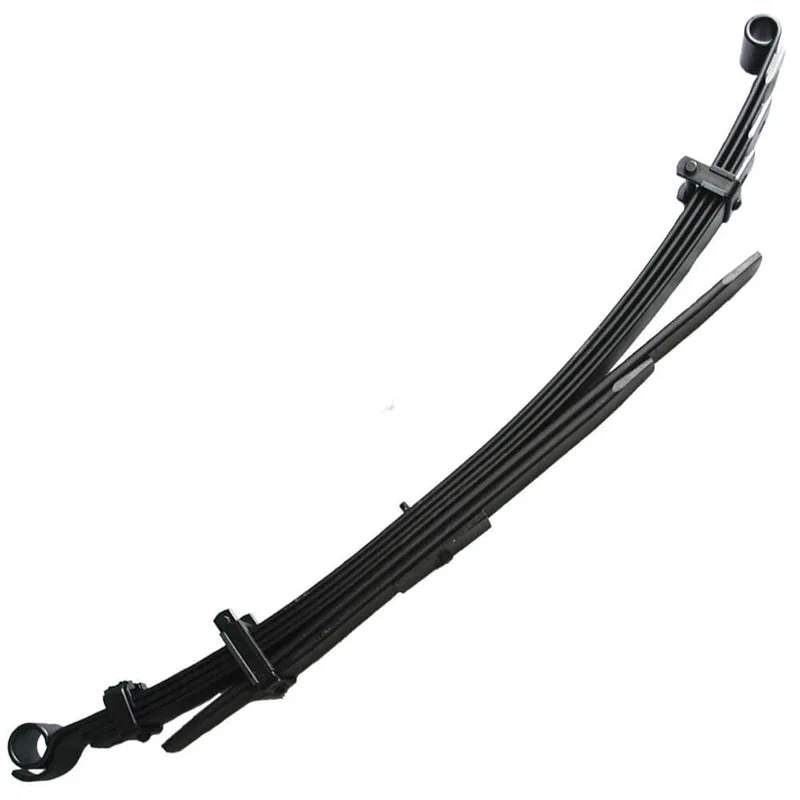

EFS Multi-Leaf Springs – Comfort, durability, and control
We manufacture our Multi-Leaf Springs from high-quality Japanese grade SUP9 & SUP9A alloyed carbon spring steel. Our range caters to those looking for maximum comfort, while also offering options for heavy-duty load-carrying purposes.
All EFS leaf springs incorporate special features like tapered leaf ends for the smoothest on-road ride, while also providing increased control off-road with greater articulation and clearance.
Presently, EFS springs are available in 30mm to 80mm raised heights, offering a slight to significant increase in spring rates over OE*.
*OE = Original Equipment – the manufacturing specs for your vehicle
Specifications
- Tapered leaf ends – reduces inter-leaf friction & improves pressure distribution in the load-bearing area
- Bolt clip liners – reduce noise & friction
- Shot peened & scragged tested – reduces stress & ensures longevity
- Leaf insert pads – further reduction of friction
- Bolt clips & military wraps – prevent leaf spread & provide safety

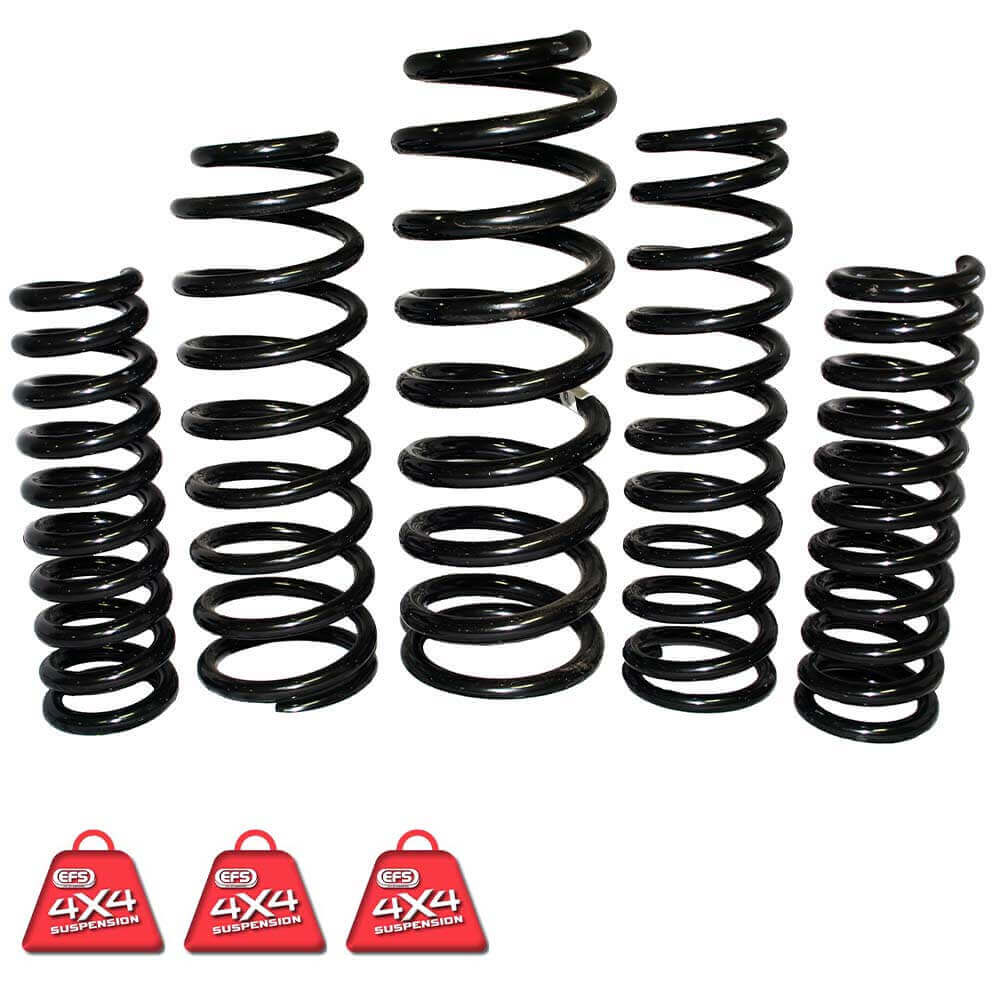

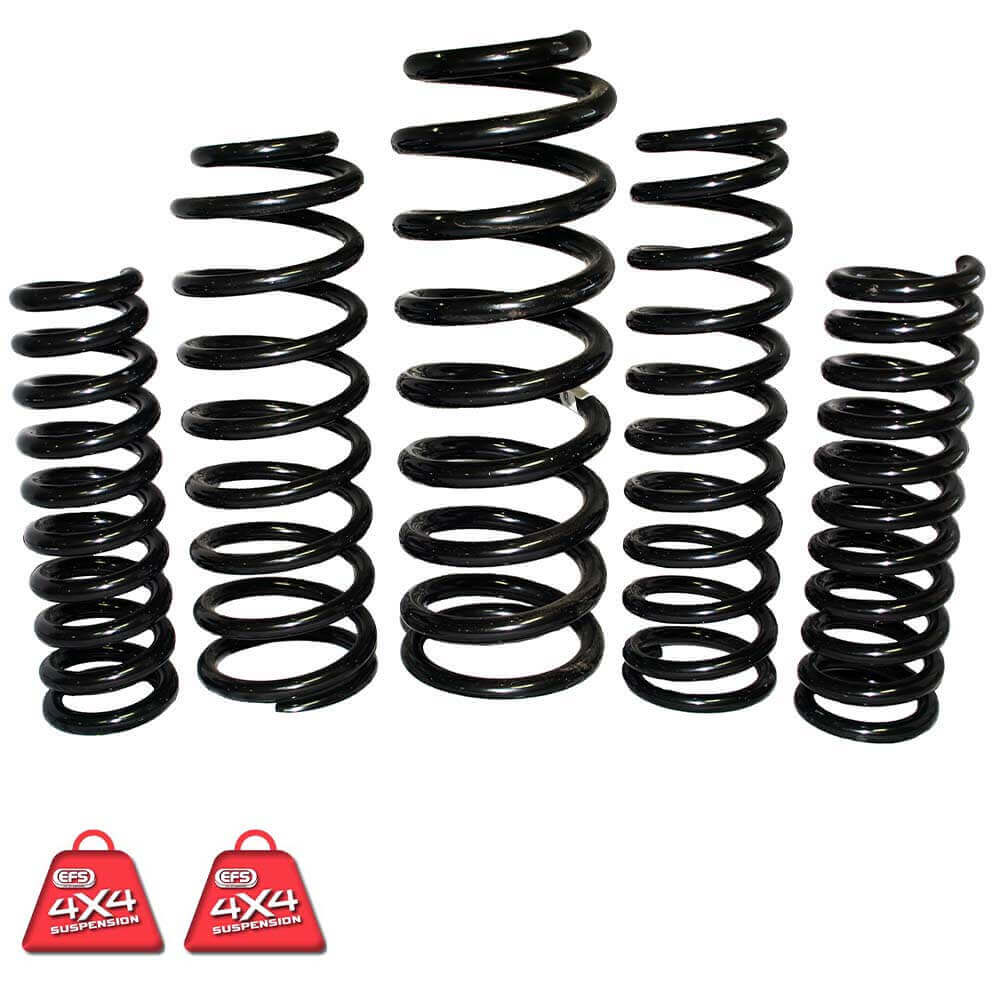

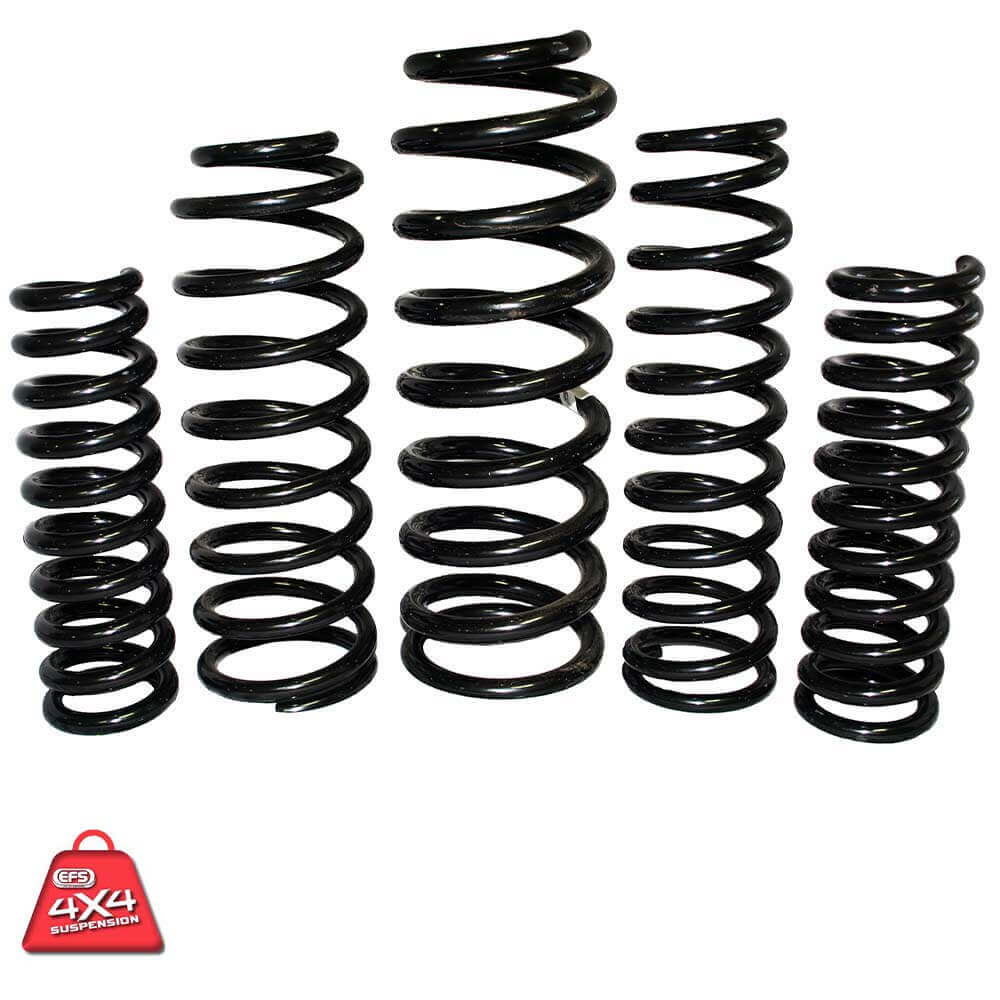

EFS Coil Springs – Comfort, durability, and control
We manufacture our coil springs to strict quality control standards using premium spring steel in compliance with ISO-9002. You can select the height you need: from standard height, up to 125mm. You can also select from our variety of spring rates (based on the weight required to compress the coil) to suit different applications including towing, load-bearing accessories and increased ride height.
Specifications
- Shot peened – to stress relieve the outer surface of the coil. This ensures coil longevity as it can operate under higher fatigue & repeated load conditions
- Scragged for quality control – this is a process where the coil is compressed beyond its yield point. This compression creates residual stresses and increases the elastic limit of the spring
- Powder-coated – To resist corrosion and to protect the spring steel from minor damage
